Chain Link, Temporary fence is also known as Temporary fencing, temporary fence panels, portable fence, Temp fence, temp fencing and mobile fence. It is consist of chain link panel, round tube frame, plastic feet, stays and clamps. This kind of fence has a superior structure, the globality, mobility and environmental suitability is very good.
2.Common product specification:
| Material | low carbon steel wire, Q195 |
| carbon steel pipe, Q235 |
| AU Standard Specification | Wire diameter:2.7mm Mesh opening:58x58mm,60mm*60mm,50mm*50mm Frame pipe:32mm O.D.33.4m Pipe thickness:2.0mm--3.0mm HXL:6'x10' |
| Surface finish (Hot dipped galvanising) | Wire zinc coating About 200g/m2(28 microns) Pipe zinc coating About 300g/m2(42 microns) |
| Fence base | Hot dipped galvanising, sizes are suited to pipe diameter. |
| Base feet size | 762mm*460mm,customized colors |
| Package | On steel pallet |
3. Chain link fence features:
1). It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
2). Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle while being strong and robust at the same time;
3). The feet are removable which makes transportation and storage much easier and more efficient
4). Easy to Erect - four metres a minute
Light and easy to handle
Create a gate at any point on the perimeter
Economical temp fence - can be used time after time
Delivered accompanied by forklift for easy distribution
Constructed from heavy gauge galvanized tube and welded mesh infill
4.Construction chain link fence productive process:
Pre-hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh---Pre hot dip galvanized pipes welded—polish the welds—paint anti-rust epoxy—spray silver powder coat on each welds—stacking—packaging
chain link temporary fence , also known as mobile fence, temporary isolation fence, mobile security fence, mobile fence. The main use of removable components will be the main guardrail with the base or guard column for standard connection, such as the specific needs of the time can be easily removed, for mobile installation.They are popular in Australia, American, England, Africa market.......
Specification

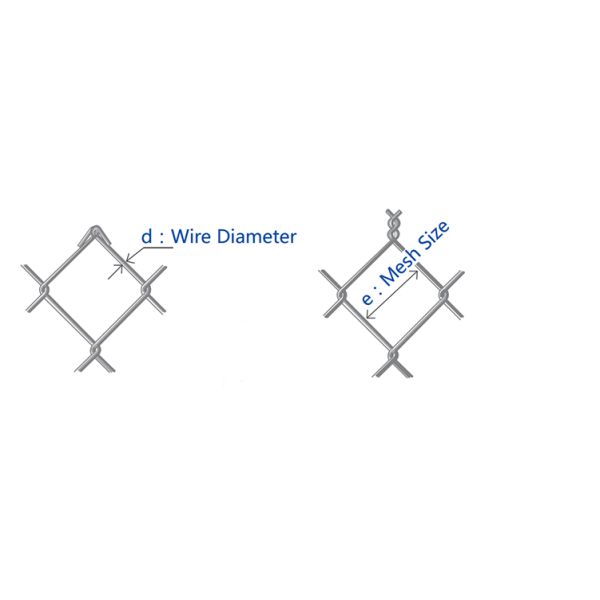

| Wire Diameter | 2.0mm-4.0mm |
| Mesh Opening | 50x50mm, 60x60mm, 80x80mm, 100x100mm |
| Frame Post | 26mm, 32mm, 38mm, 42mm, 48mm O.D |
| Panel Height | 1800mm, 2000mm, 2100mm |
| Panel Length | 2000mm, 2100mm, 2300mm, 2400mm, 2500mm |
| Surface Treatment | Pre-galvanized wire and tube welded;
pvc or pe coated after welded |
Different kinds of bases/feet of chain link temporary Fence
Temporary construction fence feet are a high quality, heavy duty, long life product. size is914x450mm.
Your High quality steel chain link temporary fence will look greater and be safer.
Of course, the plastic colorful feet is also available.
The Gate of the chain link temporary Fence
The application of chain link temporary Fence
· for the important meeting,festival,sports events and other matters barriers
· for all kinds of construction sites,mines and important site of cooped protection,etc
· for grassland
· for construction situation
The Chain Link Temporary Fence characteristic:
1.Anti -climb mesh infill
2.360°weld between the vertical & horizontal pipe.Horizontal pipe ends crimped for increased
strength.
3.Above Industry Benchmark in thickness of galvanising
4.1.94 Metre Top Horizontal Pipe for extra security
